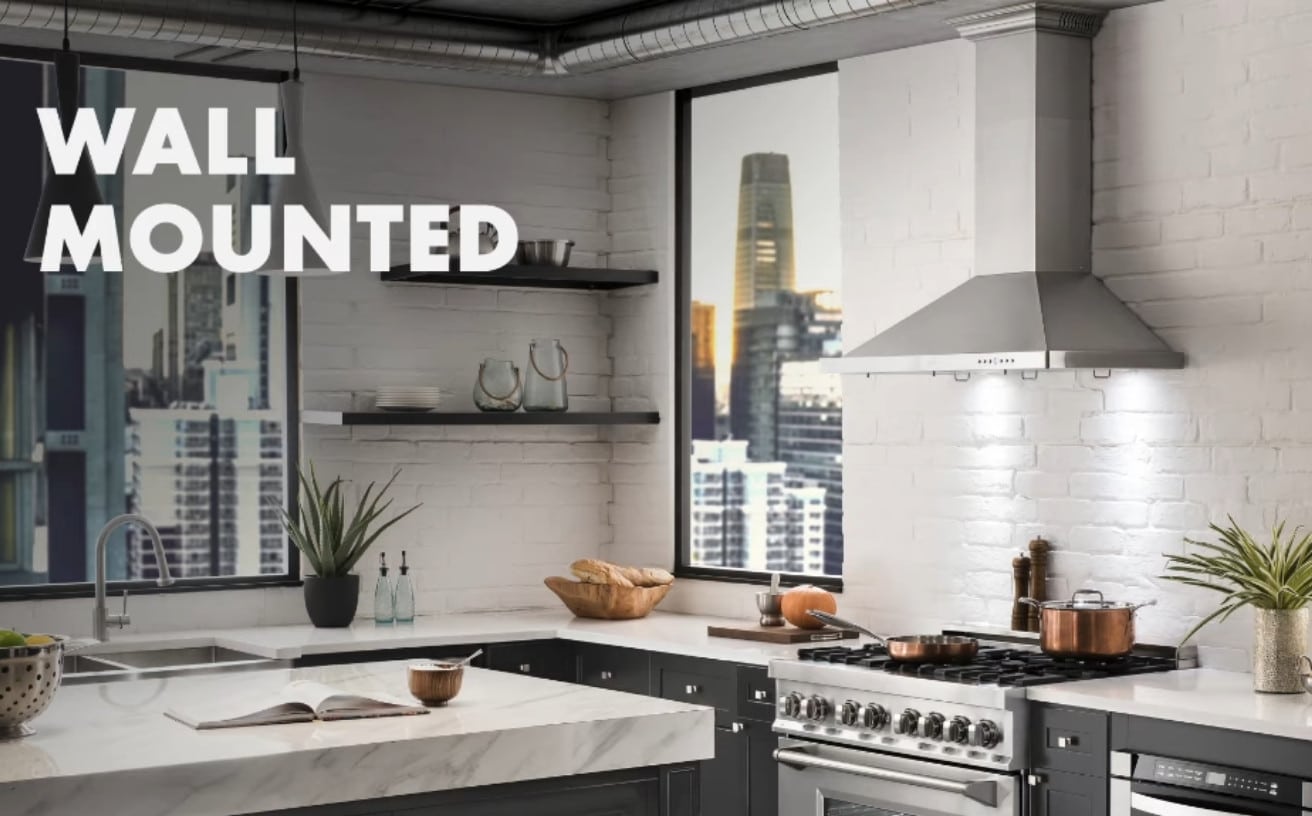

Installing a wall mount range hood involves securing a mounting bracket into wall studs, connecting the chimney assembly, running ductwork or installing a charcoal filter, and wiring the unit. It is a project most DIYers can complete in 3-5 hours with the right preparation.
Wall mount hoods are the most visible appliance in the kitchen. In our assessment, getting the centerline plumb and the bracket anchored correctly is what separates a professional-looking result from one that has to come down and go back up. Every stage of the installation is documented here, bracket anchoring through chimney assembly, for both ducted and ductless setups.
What You Need to Know Before Installing a Wall Mount Range Hood
Before touching a drill, understand how a wall mount hood is built, whether you need exterior venting, and whether this is a solo job or a two-person project.
How Wall Mount Range Hoods Are Structured
A wall mount range hood has three main components: the lower hood body (which houses the fan motor, lights, and grease filters), the inner chimney section (which connects to the hood body and routes wiring), and the outer chimney section (which slides over the inner and telescopes to match ceiling height).
The telescoping chimney is designed for ceiling heights between 7.5 and 9 feet on most standard models. For anything outside that range, you need a different approach.
Ceiling Type | Height Range | Chimney Solution |
Standard flat ceiling | 7.5 ft to 9 ft | Standard telescoping chimney included |
Taller flat ceiling | 9 ft to 10 ft | Extended chimney kit, purchased separately |
Vaulted or cathedral ceiling | 10 ft and above | Custom chimney extension, confirm with manufacturer |
Check this table against your ceiling height before purchasing. An extended chimney kit ordered after the fact adds lead time and cost. If you have a vaulted ceiling, confirm kit availability for your specific model before buying the hood itself.
Ducted vs. Ductless: What Changes in a Wall Mount Install
For a ducted wall mount hood, ductwork exits through the top of the chimney and connects to the wall or ceiling cavity, routing to an exterior wall cap. For a ductless wall mount hood, a charcoal filter is installed behind the grease filter and the chimney top is sealed with a cover plate, recirculating filtered air back into the kitchen.
The mounting process, chimney assembly, and wiring are identical for both configurations. The only difference is what happens at the exhaust stage.
We recommend confirming your configuration and having all the right materials on hand before the install begins. A mid-project trip for a wall cap or charcoal filter is avoidable with five minutes of preparation.
Is This a Two-Person Installation?
Yes, and this is not a suggestion. The hood body alone typically weighs 30-60 lbs and must be held firmly against the wall at the correct height while the lower mounting screws are driven. The chimney sections add further weight overhead. In our experience, attempting this solo without a purpose-built mounting prop or cabinet jack is the most consistent source of crooked installs and dropped equipment on this hood type.
Time required | 3-5 hours |
Difficulty | Intermediate |
People needed | 2 (minimum) |
Requires electrician? | Only if no junction box exists inside the wall |
Tools and Materials You’ll Need
Tools | Materials |
Drill with long drill bits | Mounting hardware (included with hood) |
Stud finder | Heavy-duty toggle bolts (if studs don’t align) |
48″ level (preferred for chimney plumb) | Foil HVAC tape |
Tape measure and pencil | Rigid ductwork (ducted only) |
Wire stripper | Exterior wall cap (ducted only) |
Non-contact voltage tester | Exterior-grade caulk (ducted only) |
Adjustable wrench | Charcoal filter (ductless only) |
Phillips and flathead screwdrivers |
One measurement to take before buying anything: check your bracket’s hole spacing against your actual stud positions. Standard stud spacing is 16 inches on center, and most wall mount hood brackets are designed for that spacing. Not all are. Measure the bracket hole positions and compare against your stud map before drilling. If the holes do not land on studs, heavy-duty toggle bolts rated for the full weight of the unit are the correct fix.
How to Remove an Existing Wall Mount Range Hood (If Replacing)
Shut off the circuit breaker that powers the existing hood before touching anything.
Disconnect the duct at the chimney top first, before unfastening the hood body from the wall. If you unfasten the hood body while the chimney is still connected to the duct above, the full assembly wants to shift and fall simultaneously. That is a 50 lb problem with nowhere to go.
Once the duct is disconnected, note the existing duct collar size. Your new hood may have a different collar diameter. Adapters exist, but every adapter adds resistance and reduces effective CFM. If the sizes differ significantly, factor a straight duct replacement into the project scope.
Mounting the Wall Mount Range Hood
The mounting phase is identical for ducted and ductless configurations.
A wall mount hood that is not centered, level, and anchored into solid structural material is both a safety hazard and a visible aesthetic problem in the kitchen.
Step 1: Find and Mark Your Wall Studs
Use an electronic stud finder across the full mounting zone and mark both edges of each stud with a pencil. Map stud positions at both the upper bracket height (near the ceiling) and the lower hood body height. The bracket must land on studs at both mounting points.
If the bracket holes do not align with your studs, use heavy-duty toggle bolts rated for the total weight of the unit, typically 50-80 lbs including the chimney sections. Standard hollow-wall drywall anchors are not adequate for this application and will pull out under sustained load.
Step 2: Locate the Centerline Above the Cooktop
Measure the cooktop width from both edges and mark the center point on the cooktop surface. Transfer that center point straight up the wall using a long level or plumb line. Mark the centerline clearly at both the upper bracket position and the lower hood body position.
The chimney and hood body must align with this centerline. A 1-inch offset is immediately visible on a wall mount installation because the chimney runs floor to ceiling in the primary sight line. Measure from both sides of the cooktop independently to confirm it is actually centered in the cooking space before using it as your reference point.
Step 3: Mount the Upper Bracket to the Wall
This bracket does one job: hold the full chimney-and-hood assembly against the wall indefinitely. Both chimney sections, the wiring chase, and any vibration load from normal fan operation all transfer through this single connection point. Nothing downstream in the installation can compensate for a bracket that is not anchored correctly.
The upper mounting bracket attaches to the wall 6-12 inches below the ceiling, or at the specific height shown in your installation manual. Drill pilot holes into the studs at the marked positions, then drive 3-inch screws through the bracket into solid stud material. Pull the bracket by hand after installation. It should not flex or shift at all.
Step 4: Mount the Lower Hood Body
Lift the hood body against the wall at the manufacturer-specified height above the cooktop, typically 28-36 inches. One person holds the hood at the correct position and checks level on both axes while the second person drives the lower mounting screws.
Most wall mount hoods have a ledge or hook built into the lower bracket that lets the hood rest in position while you check alignment before fully committing to the screws. Use it. Confirm level on both the horizontal and vertical axes before tightening. A hood that is slightly off-level at this stage will compound visually once the chimney is in place.
Step 5: Connect the Electrical Wiring
Most wall mount hoods require a hardwired connection to a junction box inside the wall, positioned at or above the upper bracket. Feed the house wiring down through the inner chimney section before assembling the chimney. The wire routes from the junction box through the chimney to the hood body connection point.
Match each conductor to its counterpart: hot to hot, neutral to neutral, ground to ground. Thread a wire nut onto each connection and pull down with a firm tug to confirm nothing is loose. A wiring fault discovered before chimney assembly is a five-minute fix; one discovered after is a full disassembly. If no junction box exists at the correct location inside the wall, an electrician must install one before the hood goes up. This is not an improvisation point.
Step 6: Attach the Inner and Outer Chimney Sections
Slide the inner chimney section onto the hood body and secure it at the lower connection point. Feed the electrical wiring through the chimney channel as you go. Then slide the outer chimney section over the inner section and extend it upward until it reaches the upper bracket.
For ducted installations, do not lock the outer chimney in place yet. The duct connection at the chimney top must be made before the outer section is locked. See Step 7 in the ducted section below.
Adjust the outer chimney to the correct height for your ceiling and align it with the upper bracket. Use set screws to lock the outer section in position. Tighten firmly, but stop before the point where the thin-gauge stainless panel begins to deform. A dented chimney panel is a cosmetic problem with no clean fix.
Ducted Wall Mount Range Hood Installation
For a ducted wall mount range hood, ductwork exits through the top of the chimney and connects to the wall or ceiling cavity, routing to an exterior wall cap.
Complete Steps 1-6 in the mounting section above, stopping before locking the outer chimney, then continue here.
Step 7: Connect Ductwork at the Chimney Top
Before locking the outer chimney section, reach inside or above the chimney to access the exhaust collar at the top of the inner chimney. This is the connection point most installers miss because it is not visible from outside the chimney once assembly is complete.
Connect the first rigid duct section or a short semi-rigid aluminum connector to the exhaust collar. Seal the joint with foil HVAC tape. Standard cloth-backed duct tape is not rated for exhaust temperatures or grease vapor exposure. It releases from the duct surface before the first high-heat cooking session is over, leaving the joint open. Foil HVAC tape is the specified material and holds under any cooking temperature. Once the duct connection is sealed, slide the outer chimney up over the connection and lock it in position.
Step 8: Route Ductwork Through the Wall or Ceiling Cavity
From the chimney top, the duct routes to an exterior exit point using one of two paths.
For wall venting: cut through the wall at the appropriate height using a hole saw sized to your duct diameter. Run rigid aluminum duct from the chimney connection through the wall cavity to the exterior opening. Wherever a direction change is required, choose a 45-degree elbow over a 90-degree turn. The tighter the bend, the more turbulence the air column must fight through. A 90-degree elbow costs roughly 15-20% of effective CFM; a 45-degree sweep costs about half that. On a run with two or three direction changes, elbow selection alone determines whether the installed system performs to spec.
For ceiling routing: the duct travels up through the ceiling cavity into the attic and exits through an exterior soffit or roof cap. This requires attic access to run and connect the duct above the ceiling line. Use rigid duct with foil HVAC taped joints throughout. Seal every joint; grease vapor inside a ceiling cavity is a fire risk that accumulates slowly and invisibly.
Step 9: Install the Exterior Wall Cap
Size the exterior opening to the duct diameter, not to the cap’s outer flange. Slide the cap into position from outside the wall, press the flange flat against the siding, and drive corrosion-resistant screws into the wall sheathing. Apply exterior-grade caulk around the full flange perimeter after the cap is fastened, not before, so the caulk is not displaced during installation. Before the caulk skins over, push the damper flap open with your hand and release it. A correctly balanced flap drops cleanly back to the closed position. One that stays partially open, or requires a tap to seat, needs adjustment before the caulk cures.
Wall cap diameter must match duct diameter exactly. No reducers at the exit point. A smaller cap creates turbulence, increases operating noise, and reduces exhaust performance. Check the cap for a mesh screen or insect barrier behind the damper and remove it before mounting. Even routine cooking saturates a mesh screen in a matter of weeks, at which point it restricts exhaust flow, raises operating noise, and strains the fan motor.
Step 10: Test Airflow
Restore power at the breaker. Run the fan on its highest speed setting. Walk outside and confirm the wall cap damper flap is visibly swinging open under airflow. Back inside, walk the chimney seams and duct joints with the fan running on high and a lit incense stick held close to each connection. Smoke that drifts freely away from the surface indicates a sealed joint. Smoke that bends sharply toward the metal or is pulled into a gap marks a leak point that needs foil HVAC tape before the installation is complete.
Ductless Wall Mount Range Hood Installation
For a ductless wall mount range hood, the chimney top is sealed with a cover plate, a charcoal filter is installed behind the grease filter, and filtered air recirculates back into the kitchen through louvered vents.
Complete Steps 1-6 in the mounting section above, then continue here.
Step 7: Install the Charcoal Filter
Locate the charcoal filter slot inside the hood body. On most wall mount hoods, this slot sits directly behind the baffle or mesh grease filter, accessed from the front of the hood. Slide the charcoal filter into position and lock it if the slot has a retention clip.
Grease filters and charcoal filters serve different functions and must be installed in the correct order. The grease-catching layer always faces the cooking surface directly; the odor-absorbing carbon layer sits behind it in the airstream. Reversing this puts the charcoal filter in the path of unfiltered grease vapor; it clogs rapidly and provides no meaningful odor control. Confirm the correct position for each filter type in your model’s installation diagram before fitting either one.
Step 8: Seal the Chimney Top (Ductless Cap)
Fit the ductless cover plate over the exhaust port at the top of the inner chimney section. This plate is critical. Without it, the fan draws air up through the chimney and exhausts it above the cover plate into the wall cavity, completely bypassing the charcoal filter. Secure the plate with the screws provided in the hardware pack.
Some wall mount hood models include an internal damper that automatically closes the exhaust port when no duct is connected. Check your model’s manual to confirm whether the cover plate is still required in addition to the automatic damper. There is no performance cost to fitting the plate if it turns out to be redundant, but leaving it off when the damper alone proves insufficient routes exhaust vapor into the wall cavity.
Step 9: Confirm Recirculation Airflow
Restore power. Run the fan on the highest speed setting. Air should exit through the recirculation vents, which are typically small louvered slots on the upper hood body or at the lower base of the chimney section. Hold your hand at these vents and confirm air is moving outward.
No airflow at the recirculation vents means one of two things: the charcoal filter is installed backward, blocking the airflow path; or the ductless cover plate is not seated correctly and the exhaust is bypassing the recirculation circuit. Work back through Steps 7 and 8 before assuming the unit is defective.
Common Wall Mount Range Hood Installation Mistakes
Wall mount installations look straightforward on paper, but a small set of recurring errors is responsible for most of the structural failures, chimney alignment problems, and noise complaints we see in the field.
Frequently Asked Questions
How do I find studs for a wall mount range hood installation?
Use an electronic stud finder to locate studs in the mounting zone and mark both edges of each stud with a pencil. Standard stud spacing is 16 inches on center. Most wall mount hood brackets are designed to span two studs at that spacing. If your bracket holes do not align with the stud positions, use heavy-duty toggle bolts rated for the full installed weight of the unit, typically 50-80 lbs including the chimney sections.
What ceiling height do I need for a wall mount range hood?
Most wall mount range hoods fit ceiling heights between 7.5 and 9 feet using the standard telescoping chimney. For ceilings between 9 and 10 feet, an extended chimney kit is required and must be purchased separately from the hood. Vaulted or cathedral ceilings above 10 feet typically require a custom chimney extension specific to the model. Confirm the kit is available for your chosen hood before purchasing the unit.
Do wall mount range hoods need to be vented outside?
No, wall mount range hoods can operate as ducted or ductless. Ducted is the preferred configuration on any wall mount installation where the exterior wall or ceiling cavity offers a viable route. Ducted removes grease, moisture, and cooking odors from the kitchen entirely. Ductless models recirculate air through a charcoal filter and are a practical alternative where exterior venting is not feasible, though performance on heavy cooking is lower and charcoal filters require replacement every 3-6 months.
Can a wall mount range hood be installed without a junction box?
No. Wall mount range hoods require a hardwired connection to a dedicated junction box inside the wall, positioned at or above the upper chimney bracket. If no junction box exists at the correct location, a licensed electrician must install one before the hood is mounted. Improvising a wiring connection without a proper junction box is a code violation in most jurisdictions and a genuine fire risk.
How do I stop my wall mount range hood chimney from rattling?
In our experience, chimney rattle is almost always caused by the outer chimney section not being fully secured at the upper mounting bracket. Tighten the set screws that lock the outer chimney to the bracket first. If the rattle continues, apply a strip of thin foam weather-strip tape between the inner and outer chimney sections at their overlap point. Also verify the duct connection at the chimney top is sealed with foil HVAC tape and not vibrating against the chimney interior.
What duct size should I use for a wall mount range hood?
Match the duct diameter to the hood’s exhaust collar and maintain that diameter for the entire run. For hoods rated 400 CFM and below, 6-inch round or 3.25 x 10 inch rectangular duct is standard. For hoods rated 400-900 CFM, 7-inch or 8-inch round duct is recommended. The duct diameter at the collar sets the minimum for the entire run. Any transition to a smaller diameter downstream functions as a choke: back pressure rises, measurable CFM at the cap drops, operating noise increases, and motor service life shortens. Run the full collar diameter from exhaust port to exterior cap without reduction.
My wall mount range hood is not level after mounting. How do I fix it?
If the hood body is slightly off-level, loosen the lower mounting screws, adjust the position, and re-tighten. Most lower bracket systems allow a small amount of lateral shift before the screws are fully seated. If the chimney is off-plumb, reposition the outer section at the upper bracket before tightening the set screws. Correcting level or plumb after the chimney is fully locked requires partial disassembly of the outer section. Catching it during the install is always faster than fixing it after.
- Locking the outer chimney be
